TABLET INSPACTION MACHINE   OUR PRODUCTS

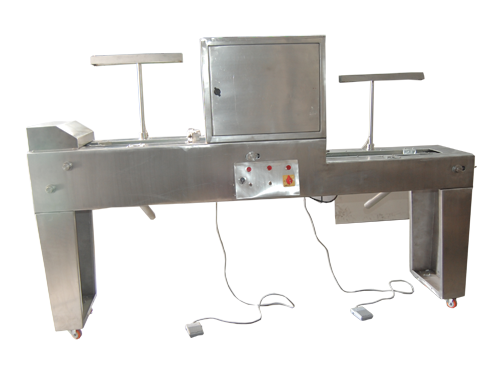

Tablet Inspection Machine
The machine is most ideal for visual inspection of tablets.

   both coated and uncoated types, in all sizes
   high speed ensures strict quality control and good checking rate>

 Salient Features
   Contact parts made of Stainless steel or synthetic
   Nylon endless conveyor belt,washable and easily replaceable
   Adjustable conveyor speed & tablet feed
   Extra large vertically adjustable hopper,holding capacity 25-30 kg
   Dust collecting tray provided with cleaning brush
   100% tablets reversed for inspection
   High safety ensured by guards
   Special discharge chute provided for smooth and safe discharge
 Technical Specifications
Motor
:
0.25 hp single phase variable speed drive
Inspection capacity
:
700,000 to 800,000 tablets per shift

BLISTER PACKAGING MACHINE
CAPSULE SECTION
LIQUID SECTION
OINTMENT SECTION
TABLET SECTION




TRAY DRYER 24/48 / GMP

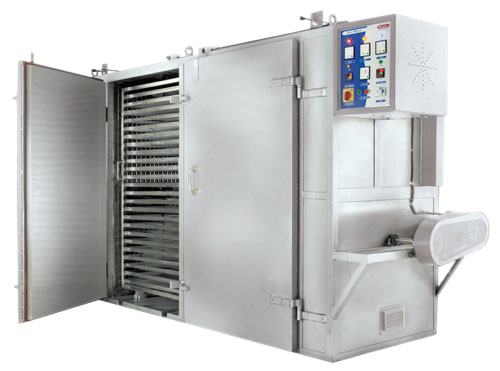

Tray Dryer
 Cabinet
Cabinet of the dryer will be of 12/24/48/96 Trays capacity, made from MS angle frame of double wall construction lined internally with 18 SWG and externally 18 SWG MS sheet. The cavity formed in between double wall will be properly insulated with 60 mm thick Glass wool to prevent heat losses from dryer.
 Doors
Heavy duty airtight hinged doors made from 16 SWG MS sheet backed by 50 mm Glass wool on the inner side and ball catch locking arrangement together with 40 mm asbestoses gasket rope ensure very sturdy construction of the dryer.
 Electrical Heating
The Air inside the Tray Dryer is heated by "U" tube S.S.304 air heaters each of 1 KW. The heaters are fitted on the sides of the dryer to facilitate uniform heating. Maximum temperature attained inside the dryer is 100' C and will be indicated and controlled by a Digital Temperature indicator cum controller over full range of heating load.

   Total heating load for it will be
   12 Trays Dryer - 4 KW
   24 Trays Dryer - 6 KW
   48 Trays Dryer - 12 KW
   96 Trays Dryer - 24 KW
The heaters will be inserted inside tubular pipe to prevent it from becoming RED HOT. The terminals of the heaters will be brought outside the dryer to make it safer for operations for solvent based products.
(OPTION FOR FLAME PROOF ELECTRICAL HEATERS ARE ALSO AVAILABLE)

 Air Circulation
Air inside the dryer is circulated by one heavy duty axial flow S.S.304 or alluminum blower fitted on a shaft of and driven by l H.P. through belt. The special design of the Blower ensures uniform air circulation so that there is uniform air current over the entire charge loaded in the Trolley inside the dryer. The working of the motor is indicated by lamps in the control panel.
 Trays
Trays will be manufactured from 1.6 mm SS 304 sheets. Its dimensions are 32" x 16" x 1 l/4". The Trays have rounded corners with' mirror finish from inside and outside. SS 316 quality is available on demand.
